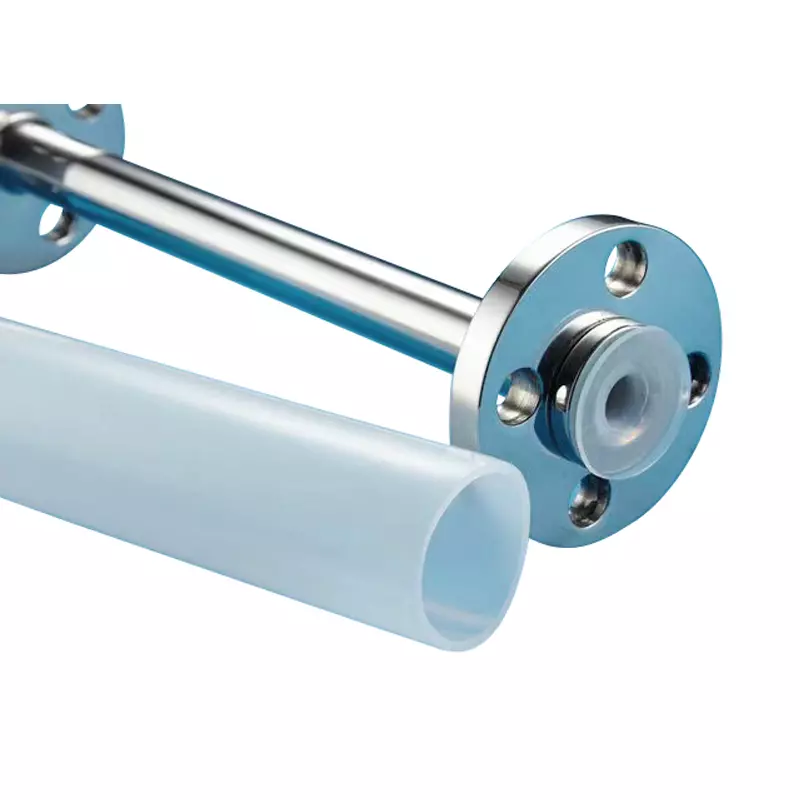

Electronic Grade PFA/PTFE Piping Systems

Overview

Anhui Xinfulong's Electronic Grade Piping Systems are precision-engineered for the most demanding ultra-high-purity (UHP) fluid handling applications in semiconductor manufacturing, wet electronic chemical processing, and advanced node fabrication. Manufactured from semiconductor-grade PFA (perfluoroalkoxy) and PTFE (polytetrafluoroethylene) resins, our piping systems deliver exceptional chemical resistance, ultralow extractables, and superior thermal stability — ensuring that the fluids reaching your process remain as pure as when they left the supply source.

In semiconductor fabrication, even trace levels of metallic ions, anionic contaminants, or organic residues can cause wafer defects and directly impact production yield. Electronic-grade PFA/PTFE piping serves as the critical "vascular system" of the fab — transporting ultrapure water (UPW), wet chemicals, etchants, and solvents from bulk distribution to wet benches and process tools. Our electronic grade piping systems are manufactured and packaged in controlled cleanroom environments, with each batch rigorously tested to meet the stringent requirements of SEMI F57, the global benchmark for UHP polymer materials and components in semiconductor fluid delivery systems.

Key Features

Semiconductor-Grade Material Purity

• Manufactured from electronic-grade PFA and PTFE resins from leading global suppliers, featuring extremely low ionic content and minimal extractables

• PFA resins such as Chemours Teflon™ 450HP/451HP/950HP PLUS and Daikin NEOFLON™ AP230/AP230SH/AP231SH provide the highest purity levels available

• Ultra-low extractables ensure parts-per-billion (ppb) to parts-per-trillion (ppt) purity levels, meeting the most stringent cleanliness requirements of advanced semiconductor nodes-

• No metal ion contamination — all fluoropolymer wetted paths eliminate the risk of metallic contamination that impacts process yields

Exceptional Chemical Resistance

• Inert to virtually all chemicals encountered in semiconductor manufacturing — including hydrofluoric acid (HF), hydrochloric acid (HCl), sulfuric acid (H₂SO₄), nitric acid (HNO₃), hydrogen peroxide (H₂O₂), and various solvents and oxidizers

• Outstanding resistance to chemical permeation — dense, voidless structure minimizes fluid penetration and maintains chemical integrity

• Compatible with concentrated and dilute acids, bases, oxidizers, and organic solvents across the full pH range

Broad Temperature Range & Thermal Stability

• Continuous service from -200°C to +260°C

• Maintains mechanical and dimensional integrity across wide temperature fluctuations — from cold chemical storage to heated process baths

• Stable flexibility and mechanical strength even at extreme temperatures

• Excellent thermal shock resistance for reliable performance during rapid temperature cycling

Superior Surface Quality & Cleanliness

• Extremely smooth inner surface with low roughness (Ra values meeting SEMI F57 requirements), minimizing particle adhesion, microbial growth, and fluid entrapment

• Translucent construction enables visual flow monitoring and easy inspection

• Non-stick, anti-adhesion surface properties facilitate efficient drainage, purging, and cleaning

• Ultralow particle release — each batch is tested with Agilent ICP-MS and RION Particle Analyzer to ensure low metal ion and particle release

Mechanical Integrity & Reliability

• Excellent crack and stress resistance — PFA delivers superior mechanical properties compared to PTFE while maintaining comparable chemical inertness

• High flexural strength and long flex-life under thermal cycling

• Low coefficient of friction for efficient fluid flow and reduced pressure drop

• Near-zero moisture absorption ensures dimensional stability in all environments

Cleanroom Manufacturing & Packaging

• Critical production processes carried out in Class 1000/10,000 cleanrooms

• Extrusion in controlled cleanroom environments; final packaging in Class 100 cleanrooms to prevent contamination

• Double-bagged and labeled packaging to fab protocols for controlled introduction into cleanroom environments

• Full traceability from raw material to finished product

Technical Specifications

Quality Standards & Compliance

SEMI F57 Compliance
Our electronic grade piping systems are manufactured and tested in full compliance with SEMI F57 — the semiconductor industry's definitive standard for ultra-high-purity polymer materials and components used in ultrapure water and liquid chemical delivery systems. SEMI F57 establishes minimum performance requirements across four critical parameters:

• Metal Ion Contamination — Ensuring ultralow extractable metal ions that could cause wafer defects

• Anionic Contamination — Controlling trace anions that impact process chemistry

• Total Organic Carbon (TOC) — Maintaining ultralow organic extractables

• Surface Roughness — Ensuring smooth surfaces that minimize particle adhesion and entrapment

China Semiconductor-Grade PFA Pipe Standard (T/CPCIF 0464-2025)
In addition to SEMI F57, our products also comply with China's first national-level standard for semiconductor-grade PFA pipes — T/CPCIF 0464-2025《半导体级超纯可熔性聚四氟乙烯(PFA)管》, officially released by the China Petroleum and Chemical Industry Federation and effective December 2025. Notably, several technical requirements in this standard are stricter than SEMI F57 — for example, TOC content is limited to ≤2000 μg/m² (vs. SEMI F57's ≤40000 μg/m²).

Additional Certifications

• FDA 21 CFR 177-1520 / 177-1550 — Extractables testing for pharmaceutical and food-contact applications-

• ISO 9001 — Quality Management System-

• ISO 14001 — Environmental Management System

• ISO 45001 — Occupational Health and Safety Management System

Applications

Our Electronic Grade Piping Systems are widely deployed across semiconductor and high-purity chemical processing applications:

Semiconductor Manufacturing

• Bulk Chemical Distribution Systems — concentrated and dilute acids, bases, oxidizers, and solvents from bulk storage to point of use

• Wet Benches & Wet Process Equipment — Chemical delivery lines for wet etching, wafer cleaning, and photoresist processing

• Ultrapure Water (UPW) Systems — Distribution of ultrapure water with resistivity ≥18.2 MΩ·cm

• Chemical Mechanical Planarization (CMP) — Slurry delivery systems

• Waste Chemical Collection — Safe transport of chemical waste streams

Wet Electronic Chemicals

• Transfer lines for high-purity acids (HF, HCl, H₂SO₄, HNO₃), etchants, and solvents

• High-purity reagent feed and distribution systems

• Chemical blending and recirculation loops

Photovoltaic & Display Manufacturing

• Chemical delivery for solar cell and flat panel display fabrication

Pharmaceutical & Biotech

• High-purity fluid transfer with zero contamination risk

• FDA-compliant processing lines for pharmaceutical manufacturing

Analytical & Laboratory Instruments

• High-purity fluid and gas transfer in analytical instruments and medical devices

Available Configurations

Why Choose Xinfulong Electronic Grade Piping?

• Semiconductor-Grade Materials — Premium PFA and PTFE resins from Chemours and Daikin ensure the highest purity levels

• SEMI F57 Certified — All products are rigorously tested for metal ion extraction, particle release, and TOC content in compliance with SEMI F57 standards

• Cleanroom Manufacturing — Critical production processes in Class 1000/10,000 cleanrooms; final packaging in Class 100 cleanrooms

• Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts

• Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond

• Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities including Agilent ICP-MS for metal ion analysis and RION Particle Analyzer for particle release testing

• End-to-End Service — From material selection and custom design to manufacturing, testing, and after-sales support

Customization Options

We offer fully customizable electronic grade piping systems to meet your specific requirements:

• Custom diameters, wall thicknesses, and lengths

• PFA or PTFE material selection based on application requirements

• Multiple connection options: flare fittings, IR welding, insert bushings

• Custom spool configurations and pre-assembled piping systems

• Special packaging solutions for cleanroom introduction

• Laser marking upon request for traceability
