Overview

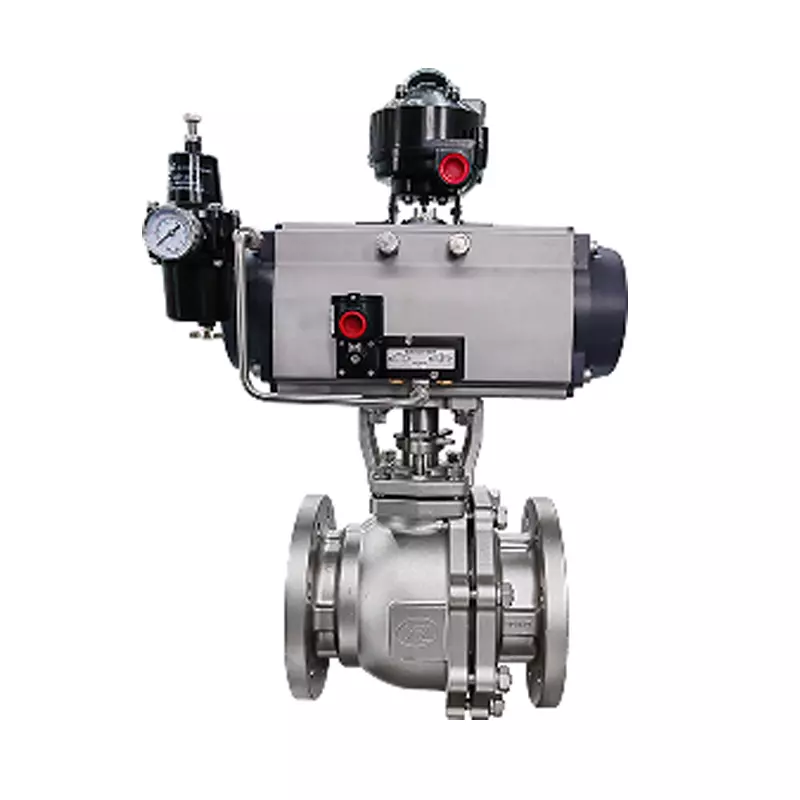

Anhui Xinfulong's Pneumatic Lined Ball Valves are engineered for automated flow control in the most demanding corrosive and high-purity applications. Combining the simplicity and reliability of a quarter-turn ball valve with the speed and precision of a pneumatic actuator, our lined ball valves deliver fast, repeatable, and fail-safe operation in semiconductor, wet chemical, pharmaceutical, and chemical processing environments.
The valve body features a full fluoropolymer lining — available in PFA, FEP, or PTFE — that completely isolates the metal body from the process medium. This fully lined design, combined with a precision-molded lined ball and stem unit, provides exceptional resistance to strong acids, alkalis, organic solvents, and ultra-pure chemicals, making it the ultimate solution for pipelines where metal valves fail.
Available with double-acting or spring-return pneumatic actuators, our valves can be integrated into automated control systems with solenoid valves, positioners, and limit switches for remote on/off or modulating control.
Key Features
Superior Corrosion Resistance
-
Full fluoropolymer lining (PFA/FEP/PTFE) on all wetted parts — inner cavity, ball, and stem — completely isolates the metal body from the process medium
-
Chemically inert to virtually all acids, alkalis, solvents, and aggressive chemicals
-
Safe from chemical reactions and impurity effluents — translucent, high-purity grade body
-
Exceptional heat resistance with a wide service temperature range
Full Bore Flow Design
-
Full-port straight-through flow path minimizes pressure drop and medium residue
-
Prevents crystallization and blockage common in chemical processing
-
Maximum flow capacity — ideal for high-flow and viscous media applications
-
Can be used for pipeline pigging and cleaning
Reliable Pneumatic Automation
-
Powered by heavy-duty rack-and-pinion pneumatic actuators (double-acting or spring-return)
-
Provides high torque needed to operate lined valves reliably, even after long periods of inactivity
-
Fast and repeatable operating times for automated processes
-
Compact structure with reliable sealing and convenient maintenance
Bubble-Tight Sealing
-
Unique elastic lip-type seat design ensures high sealing performance across wide pressure and temperature differentials
-
Integral ball and stem design (or precision-lined ball) works with PTFE seats to ensure zero leakage
-
Reduced friction coefficient between ball and seal minimizes operating torque
-
Self-adjusting seat design: when medium pressure is low, contact area is smaller for higher sealing pressure; when pressure is high, contact area increases to prevent seat damage
Anti-Static Design (Optional)
-
Anti-static device discharges potential static charge accumulation on the ball caused by friction
-
Prevents sparks in flammable solvent pipelines
-
Spring between ball, stem, and valve body provides a continuous conductive path to ground
Blow-Out Proof Stem
Low Maintenance & Long Service Life
-
Simple, robust mechanics with minimal electrical components
-
Non-stick surface properties prevent scale and sludge buildup
-
Easy to operate — low friction coefficient reduces actuation force
-
Available in PTFE-coated or stainless steel actuators for demanding environments
Technical Specifications
Actuator Options
Applications
Our Pneumatic Lined Ball Valves are widely deployed across industries requiring corrosion-resistant, high-purity, and automated flow control:
Semiconductor Manufacturing
-
High-purity chemical distribution systems
-
Wet etching and wafer cleaning processes
-
Ultra-pure water (UPW) systems-
-
CMP slurry delivery
-
Chemical mechanical planarization
Wet Electronic Chemicals
-
Transfer and control of high-purity acids, solvents, and etchants
-
Chemical blending and distribution systems
-
High-purity reagent feed lines
Chemical & Petrochemical Processing
-
Handling of strong acids (sulfuric, hydrochloric, nitric, hydrofluoric)
-
Caustic soda and alkaline solutions
-
Organic solvents and aggressive media
-
Pickling and plating lines
Pharmaceutical & Biotech
-
High-purity fluid transfer with zero contamination risk
-
Solvent and reagent delivery systems
-
FDA-compliant processing lines
New Energy
Food & Beverage
Water & Wastewater Treatment
Why Choose Xinfulong Pneumatic Lined Ball Valves?
-
Superior Corrosion Protection — Full fluoropolymer lining (PFA/FEP/PTFE) on all wetted parts provides chemical resistance superior to expensive alloys and far outlasts standard stainless steel valves in corrosive lines
-
Zero Leakage Performance — Bubble-tight sealing with elastic lip-type seat design and precision-lined ball ensures zero leakage, critical for environmental safety and product purity
-
Reliable Automation — Heavy-duty pneumatic actuators with ISO 5211 mounting provide the high torque needed for reliable operation, even after long periods of inactivity
-
Anti-Static Safety — Optional anti-static design prevents sparks in flammable solvent pipelines
-
Cleanroom Manufacturing — Critical production processes carried out in Class 1000/10,000 cleanrooms, ensuring the highest levels of purity
-
Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts
-
Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond
-
Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities
-
End-to-End Service — From custom design and material selection to manufacturing, testing, and after-sales support
Customization Options
We offer fully customizable pneumatic lined ball valves to meet your specific requirements:
-
Valve sizes from DN15 to DN400
-
Lining materials: PFA, FEP, or PTFE
-
Body materials: cast steel, stainless steel, or ductile iron
-
Connection types: flanged (ANSI, DIN, JIS, GB), wafer, threaded
-
Actuator options: double-acting or spring-return (fail-close/fail-open)
-
Control options: on/off (solenoid) or modulating (positioner)
-
Feedback devices: limit switches, position transmitters
-
Anti-static design
-
Special trim materials and configurations
