Overview

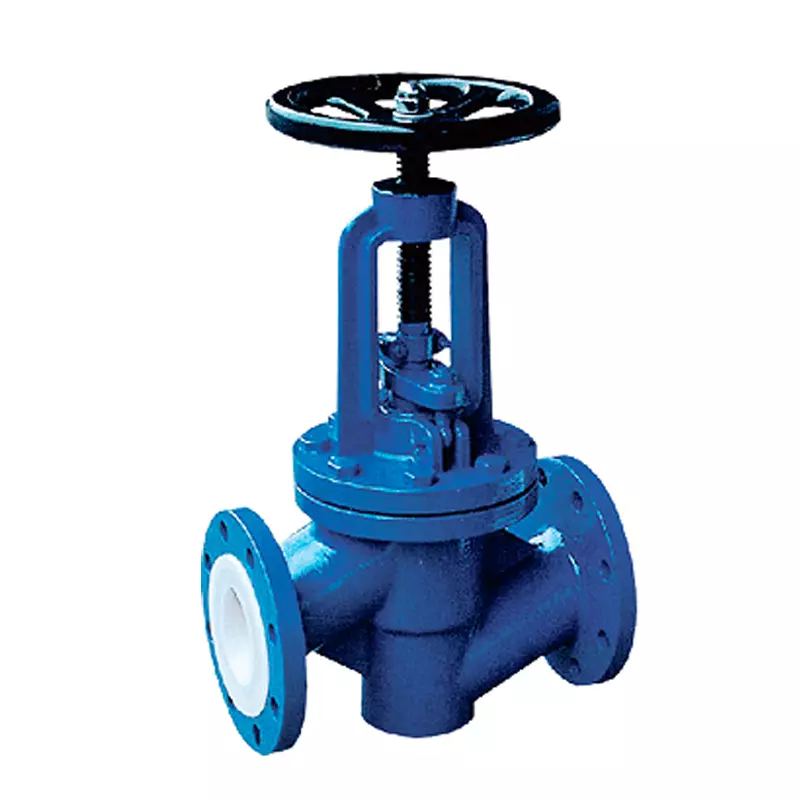

Anhui Xinfulong's FEP Lined Globe Valves are engineered for reliable on-off and throttling service in the most demanding corrosive and high-purity fluid handling applications. The valve body features a full FEP (fluorinated ethylene propylene) lining that completely isolates the metal body from the process medium, providing exceptional resistance to strong acids, alkalis, organic solvents, and aggressive chemicals.
The globe valve operates with a disc driven by a stem along the central axis in a lifting motion — a common block valve design used to connect or throttle media. Compared to gate valves, the lined globe valve offers a simpler structure, easier manufacture and maintenance, shorter disc travel for quicker opening and closing, and excellent sealing performance. The disc and stem are designed as an integral structure, ensuring compact design and safe operation.
Available with manual, pneumatic, or electric actuation, our FEP lined globe valves can be integrated into automated control systems for remote or programmed operation.
Key Features
Superior Corrosion Resistance
-
Full FEP lining on all wetted parts — inner cavity, disc, and stem — completely isolates the metal body from the process medium
-
Chemically inert to virtually all acids, alkalis, salts, solvents, and aggressive chemicals
-
Resistant to hydrochloric acid, nitric acid, hydrofluoric acid, sulfuric acid, aqua regia, and many other corrosive media
-
Applicable for solvents, reagents, acids, bases, ketones, aromatic hydrocarbons, and chlorinated hydrocarbons
Precise Flow Control
-
Lifting motion of the disc along the central axis enables precise throttling and flow regulation-
-
Short disc travel ensures quick opening and closing response
-
Excellent sealing performance — sealing surface is resistant to wear and abrasion
-
Available in multiple configurations: straight-through (most common), angle-type (for pipeline corners), and Y-type (lowest flow resistance)
Durable & Reliable Construction
-
Disc and stem designed as one integral structure for compactness and safety
-
Durable FEP lining with proven long-term performance in aggressive service
-
Blow-out proof stem design prevents accidental ejection under pressure
-
Low maintenance requirements with simple, robust mechanics
Flexible Automation Options
-
Manual operation with handwheel (standard)
-
Pneumatic actuator for remote on/off control
-
Electric actuator for integration into automated control systems
-
Can be configured for remote control and program control according to user needs
Wide Application Range
-
Suitable for strong corrosive media of various concentrations — acids, bases, salts, aqua regia, and organic acids
-
Excellent performance across a broad temperature range
-
Compact structure with flexible on-off operation
Technical Specifications
Lining Material Comparison
Available Configurations
Applications
Our FEP Lined Globe Valves are widely deployed across industries requiring corrosion-resistant and reliable flow control:
Chemical & Petrochemical Processing
-
Handling of strong acids (sulfuric, hydrochloric, nitric, hydrofluoric)
-
Caustic soda and alkaline solutions
-
Organic solvents and aggressive media
-
Chlor-alkali industry, nitrogen and phosphatic fertilizers, petroleum refining
Semiconductor & Electronics
-
High-purity chemical distribution systems
-
Wet etching and wafer cleaning processes
-
Ultra-pure water (UPW) systems
-
Chemical delivery for wet process applications
Pharmaceutical & Biotech
-
High-purity fluid transfer with zero contamination risk
-
Solvent and reagent delivery systems
-
FDA-compliant processing lines
New Energy
Metal & Mining
Food & Beverage
Water & Wastewater Treatment
Important Usage Note
FEP lined globe valves are strictly prohibited for flow adjustment/regulation. Throttling should be avoided to prevent high-speed medium flow at the orifice from eroding and destroying the sealing surface. These valves are designed primarily for on-off service and occasional throttling applications where flow velocity is carefully controlled.
Why Choose Xinfulong FEP Lined Globe Valves?
-
Superior Corrosion Protection — Full FEP lining on all wetted parts provides chemical resistance superior to expensive alloys and far outlasts standard stainless steel valves in corrosive service
-
Reliable Sealing Performance — Integral disc-stem design and precision-molded FEP seat ensure bubble-tight sealing
-
Flexible Automation — Available with manual, pneumatic, or electric actuation for integration into any control system
-
Cleanroom Manufacturing — Critical production processes carried out in Class 1000/10,000 cleanrooms, ensuring the highest levels of purity
-
Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts
-
Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond
-
Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities
-
End-to-End Service — From custom design and material selection to manufacturing, testing, and after-sales support
Customization Options
We offer fully customizable FEP lined globe valves to meet your specific requirements:
-
Valve sizes from DN15 to DN350
-
Body materials: WCB, CF8, CF8M, or other specified alloys
-
Connection types: flanged (ANSI, DIN, JIS, GB)
-
Actuator options: manual, pneumatic (double-acting or spring-return), electric
-
Lining materials: FEP, PTFE, PFA, or PCTFE as required
-
Special trim materials and configurations
-
Jacket-insulated or bellows sealing designs
