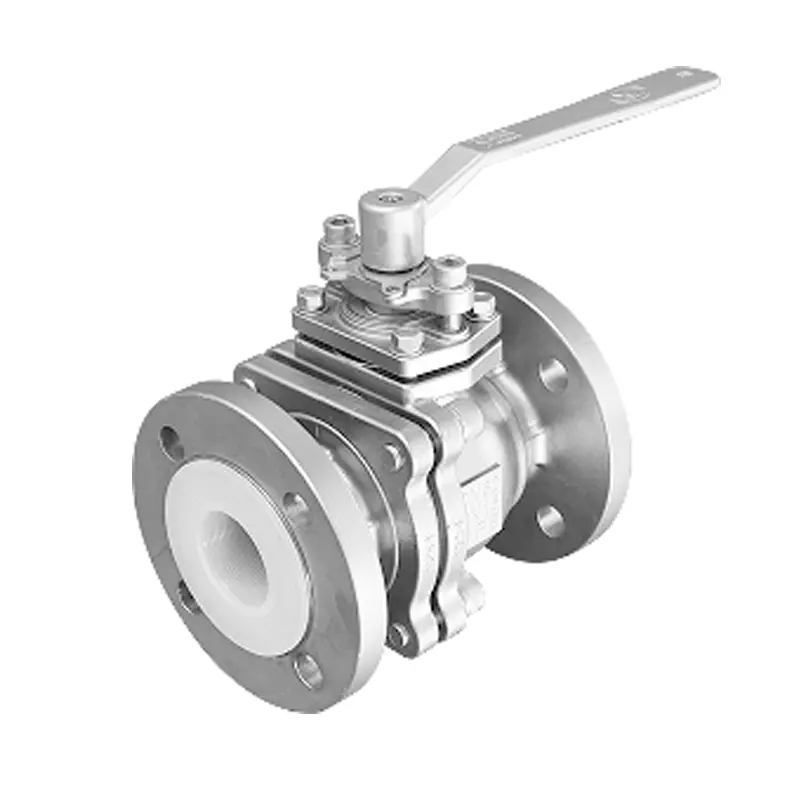

Manual Ball Valves

Overview

Anhui Xinfulong's Manual Ball Valves are engineered for reliable, precise flow control in demanding chemical, semiconductor, and industrial applications. Available in both fluoropolymer-lined (PFA/FEP/PTFE) and solid PTFE configurations, our ball valves combine robust construction with exceptional corrosion resistance, delivering bubble-tight shut-off and long service life in aggressive media handling.

The manual ball valve operates with a simple quarter-turn (90°) lever mechanism, providing quick, intuitive on/off control-. The valve's full bore design minimizes pressure loss and maximizes flow capacity, while the precision-machined ball and seats ensure absolute leak-free performance. Whether handling ultra-pure chemicals, highly corrosive acids, or high-temperature fluids, our manual ball valves are built to perform reliably in the most challenging environments.

All wetted surfaces are fully encapsulated with high-purity fluoropolymer lining — PFA, FEP, or PTFE — providing unmatched resistance to chemical attack, permeation, and microbial contamination. The lining is injection-molded and "locked-in" to the body, ball, and stem, eliminating the risk of liner collapse under vacuum or thermal cycling.

Key Features

Superior Corrosion Resistance

• Fully fluoropolymer-lined (PFA/FEP/PTFE) wetted surfaces provide exceptional resistance to virtually all corrosive media

• PFA lining offers the highest corrosion resistance, ideal for aggressive acids, solvents, and ultra-pure chemicals

• Solid PTFE construction available for applications requiring maximum chemical inertness

Bubble-Tight Shut-Off

• Precision-machined ball and seats guarantee absolute leak-free performance

• Bi-directional sealing ensures reliable shut-off in both flow directions

• Meets stringent leakage standards including API 598 and DIN EN 12266-1, Leakage Rate A

Full Bore / Reduced Port Design

• Full bore design minimizes pressure loss and maximizes flow capacity

• High Kv-value equal to the pipe diameter for unrestricted flow

• Available in reduced port configurations for applications requiring precise flow control

Robust, Maintenance-Free Construction

• Two-piece or monobloc body design with interlocking joints for superior structural integrity

• Live-loaded wedge packing reduces in-line adjustments and ensures long-term seal integrity

• Anti-blowout stem design prevents accidental stem ejection under pressure

• Self-adjusting packing provides a leak-free stem seal with zero maintenance

Static Dissipation

• Elimination of static electricity buildup — ball/stem and housing maintain the same electrical potential

• Conductive PFA grades available for static-sensitive applications

Easy Operation and Automation-Ready

• Quarter-turn lever handle with positive locked positions in open and closed positions

• Clearly marked flow direction indicators on the handle

• ISO 5211 mounting pad for easy actuator automation

External Corrosion Protection

• Thermally applied polyester powder coating (RAL 9002) provides excellent protection against external corrosion and rust

Technical Specifications

Design Configurations

Applications

Our manual ball valves are widely deployed across industries requiring high-purity, corrosion-resistant fluid control:

Semiconductor Manufacturing

• Ultra-pure chemical distribution systems

• Wet etching and wafer cleaning processes

• High-purity acid and solvent handling

• CMP slurry delivery lines

Wet Electronic Chemicals

• Transfer lines for high-purity acids (sulfuric, nitric, hydrochloric, hydrofluoric)

• Chemical blending and distribution systems

• High-purity reagent feed lines

Chemical Processing

• Corrosive chemical handling in pickling, plating, and etching processes

• Chlorine, bromine, and brine service

• Strong acid and alkali systems

Pharmaceutical & Biotech

• High-purity fluid transfer with zero contamination risk

• Solvent and reagent delivery systems

• FDA-compliant processing lines

New Energy

• Battery chemical processing and electrolyte handling

• Photovoltaic wet processing lines

Pulp & Paper / Mining

• Corrosive slurry and chemical handling

Why Choose Xinfulong Manual Ball Valves?

• Superior Corrosion Resistance — Fully encapsulated PFA/FEP/PTFE lining protects against even the most aggressive chemicals, offering longer service life than unlined or metal valves-

• Bubble-Tight Reliability — Precision-machined components and advanced sealing technology ensure absolute leak-free performance, reducing downtime and maintenance costs-13

• Cleanroom Manufacturing — Critical production processes carried out in Class 1000/10,000 cleanrooms, ensuring the highest levels of purity

• Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts

• Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond

• Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities including pressure testing, dimensional inspection, and fugitive emissions testing

• End-to-End Service — From custom design and material selection to manufacturing, testing, and after-sales support

Customization Options

We offer fully customizable manual ball valves to meet your specific requirements:

• Custom sizes (DN 15 – 200 / NPS ½" – 8")

• Body materials (ductile iron, stainless steel, carbon steel)

• Lining materials (PFA, FEP, PTFE, or conductive PFA)

• Flange connections (EN, ASME, JIS)

• End connections (flanged, threaded, socket weld)

• Handle options (standard lever, locking handle, gear operator)

• Actuator mounting (ISO 5211)

• Fugitive emissions compliance (API 641, ISO 15848)

• ATEX certification for explosive atmospheres
