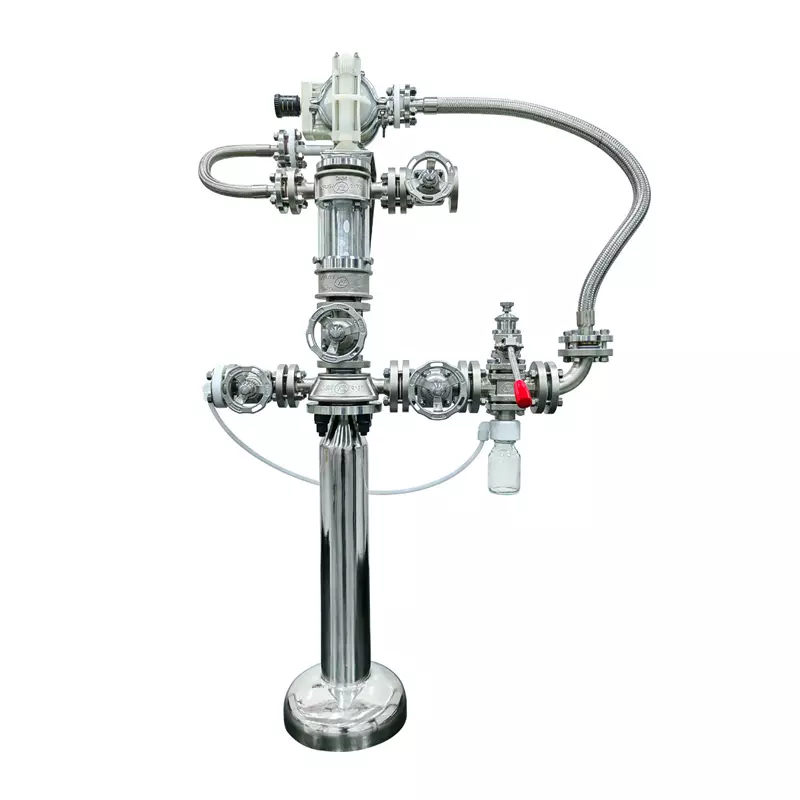

Fluoropolymer-Lined Samplers

Overview

Anhui Xinfulong’s fluoropolymer-lined samplers are engineered to enable safe, contamination-free extraction of representative samples from reactors, storage tanks, and process piping systems handling aggressive, toxic, or high-purity media-. In the chemical, semiconductor, and pharmaceutical industries, sampling is a routine yet critical operation — one that must be performed without compromising operator safety, product integrity, or process continuity-.

Our samplers feature all wetted surfaces constructed from or lined with high-performance fluoropolymers — PFA, FEP, or PTFE — ensuring exceptional corrosion resistance, ultra-low extractables, and zero metal ion contamination. The fluoropolymer lining is applied over a carbon steel or stainless steel substrate, combining the mechanical strength of metal with the chemical inertness of fluoroplastics.

Whether you need to sample concentrated acids in a wet chemical plant, ultrapure chemicals in a semiconductor fab, or corrosive intermediates in a pharmaceutical reactor, our sampling solutions are designed to deliver true representative samples safely, simply, and reliably.

Key Features

Superior Chemical Resistance

• All wetted parts are constructed from or lined with PFA, FEP, or PTFE — inert to virtually all chemicals, including concentrated acids (sulfuric, nitric, hydrochloric, hydrofluoric), alkalis, solvents, and aggressive etchants

• Fluoropolymer lining provides long-term resistance to strong acids and alkalis, eliminating corrosion-related sampling failures

• Suitable for handling highly hazardous, toxic, or environmentally unfriendly media

Contamination-Free Sampling

• Fluoropolymer wetted surfaces ensure no metal ion leaching — critical for semiconductor-grade and trace analysis applications

• Extremely low extractables and particle generation maintain sample integrity

• Smooth, non-porous surfaces prevent media adhesion and cross-contamination between samples

Operator Safety

• Closed sampling system design prevents operator exposure to hazardous vapors, high-temperature media, and toxic chemicals

• Spring-loaded lever mechanism automatically closes the sampler when released, preventing accidental spillage

• Available with locking devices and safety cabinets for enhanced protection

• Exhaust ports allow safe collection and disposal of harmful gases

Representative Sampling

• Designed to extract true, representative samples without process interruption

• PFA-lined ball valve design isolates the process line from the sample bottle at all times — ideal for sampling under vacuum

• Adjustable sampling speed and volume control for consistent, repeatable results

Ease of Operation & Maintenance

• Simple 90° turning or handwheel operation for quick sample collection

• Easily disassembled for cleaning and maintenance

• Quick and easy seat replacement minimizes downtime

• Sight glass options allow visual confirmation of process stream

Available Configurations

Technical Specifications

Applications

Our fluoropolymer-lined samplers are widely deployed across demanding industries:

Semiconductor Manufacturing

• Sampling of ultrapure chemicals, wet etchants, and high-purity acids

• Trace metals analysis in semiconductor fabrication processes-

• Contamination-sensitive sampling requiring zero metal ion release

Wet Electronic Chemicals

• Sampling of high-purity acids, solvents, and etchants

• Quality control sampling in chemical blending and distribution systems

• Trace analysis of process chemicals

Chemical Processing

• Sampling of concentrated acids (sulfuric, nitric, hydrochloric, hydrofluoric)

• Sampling of caustic alkalis, organic solvents, and aggressive media

• Sampling from reactors and vessels containing hazardous or toxic materials

Pharmaceutical & Biotech

• Sampling of active pharmaceutical ingredients (APIs) and intermediates

• High-purity fluid sampling with zero contamination risk

• FDA-compliant applications (PFA/PTFE materials)

New Energy

• Battery chemical sampling and electrolyte handling

• Photovoltaic wet processing lines

Why Choose Xinfulong Fluoropolymer-Lined Samplers?

• Superior Corrosion Protection — Full fluoropolymer lining of all wetted parts ensures long-term resistance to strong acids, alkalis, and aggressive chemicals

• Contamination-Free Sampling — No metal contact with the sample, ensuring integrity for semiconductor-grade and trace analysis applications

• Operator Safety First — Closed sampling design, automatic closing mechanism, and exhaust ports protect personnel from hazardous exposure

• True Representative Samples — Engineering design ensures samples accurately reflect process conditions

• Cleanroom Manufacturing — Critical production processes carried out in Class 1000/10,000 cleanrooms, ensuring the highest levels of purity

• Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts

• Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond

• Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities

• End-to-End Service — From custom design and material selection to manufacturing, testing, and after-sales support

Customization Options

We offer fully customizable fluoropolymer-lined samplers to meet your specific process requirements:

• Custom lining materials (PFA, FEP, PTFE, ETFE)

• Custom shell materials (carbon steel, 304, 316L, ductile iron)

• Custom diameters, lengths, and flange connections

• Custom sample bottle adapters (threading per customer requirement)

• Sight glass inclusion or exclusion

• Safety cabinet integration

• Automated operation options (actuator-controlled)
