Overview

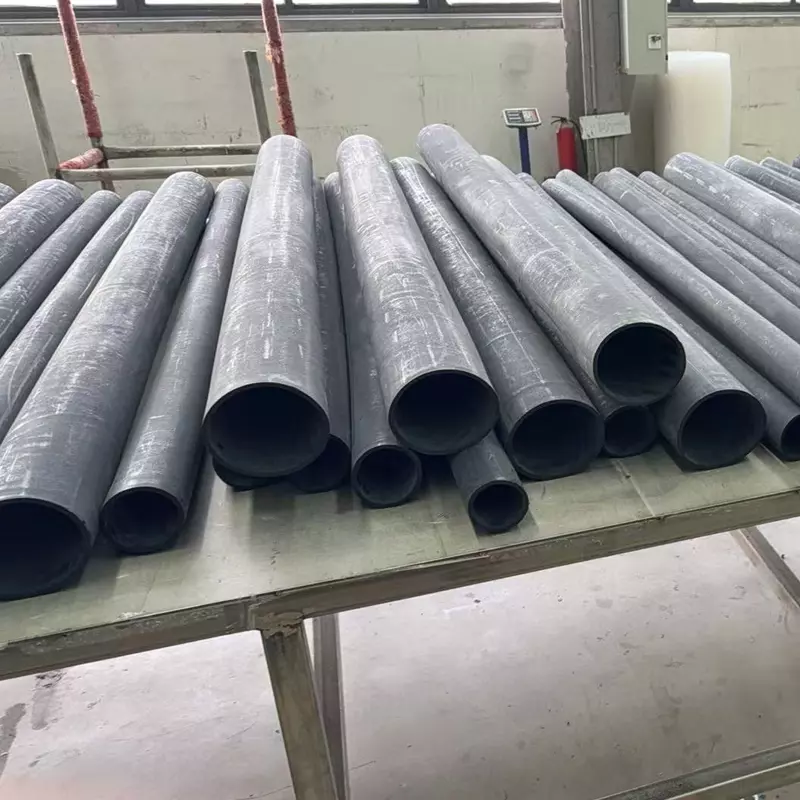

Anhui Xinfulong's Antistatic Isostatic Pressed PTFE Pipes are engineered to address the critical challenge of static electricity buildup in high-purity fluid handling systems. Manufactured from high-purity PTFE resin blended with specialized conductive fillers — typically high-purity carbon black compliant with FDA 21 CFR 178.3297- — our pipes combine the exceptional chemical resistance and non-stick properties of PTFE with reliable static-dissipative performance.
The isostatic pressing process applies hydrostatic pressure uniformly from all directions, achieving homogeneous compression of the highest quality. This produces completely voidless materials- with isotropic physical properties — substantially structurally and electrically uniform along all axes-. The result is a seamless, high-density pipe that delivers superior mechanical strength, dimensional stability, and consistent antistatic performance throughout the entire wall section.
PTFE is an excellent insulator by nature, and when non-conductive fluids flow through standard PTFE piping, significant static charge can accumulate-. In semiconductor, wet chemical, and flammable solvent handling applications, this static buildup poses serious risks — from electrostatic discharge (ESD) damage to sensitive electronic components to potentially catastrophic ignition of flammable atmospheres. Our antistatic isostatic pressed pipes eliminate these risks by providing a continuous conductive path that safely dissipates static charges to ground.
Key Features
Superior Static Dissipation
-
Uniformly distributed conductive filler throughout the pipe wall ensures consistent surface and volume resistivity
-
Provides a reliable static-dissipative pathway when installed in a properly grounded system
-
Eliminates electrostatic discharge risks in high-velocity fluid transfer and aggressive chemical processing
-
Available in both antistatic (static-dissipative) and fully conductive grades to meet specific application requirements
Isostatic Pressing Advantages
-
Homogeneous, voidless material structure with isotropic mechanical and electrical properties-
-
Uniform compression from all directions eliminates weak points and stress concentrations
-
Seamless construction — no welded joints, no extrusion lines, no potential failure points
-
Excellent dimensional stability and tight production tolerances
-
Superior density and mechanical strength compared to conventionally molded or extruded PTFE
Exceptional Chemical Resistance
-
Inert to virtually all chemicals, including concentrated acids, alkalis, solvents, and aggressive etchants
-
Outstanding resistance to permeation — isostatically compressed, smooth surface structure achieves the lowest permeation rate
-
Withstands temperatures from -70°C to +260°C
-
Suitable for ultra-pure and aggressive media across the full pH range
Ultra-High Purity
-
No metal ion contamination — isostatic pressing and sintering processes exclude contact with metal components
-
Extremely smooth, non-porous surface prevents particle entrapment and microbial growth
-
Anti-adhesive surface properties enable easy cleaning
-
FDA-compliant grades available for pharmaceutical and food-contact applications
High Mechanical Integrity
-
Excellent resistance to thermal shock and mechanical stress
-
High creep resistance and dimensional stability under load
-
Superior abrasion and wear resistance
-
Long service life with minimal maintenance requirements
Technical Specifications
Applications
Our Antistatic Isostatic Pressed PTFE Pipes are widely deployed in static-sensitive and high-purity applications:
Semiconductor Manufacturing
-
High-purity chemical delivery lines for wet etching, wafer cleaning, and photoresist processing
-
Ultra-pure water (UPW) and chemical distribution systems
-
CMP (Chemical Mechanical Planarization) slurry delivery
-
Wet process equipment and component carriers
Wet Electronic Chemicals
-
Transfer lines for high-purity acids, solvents, and etchants
-
Chemical blending and distribution systems
-
High-purity reagent feed lines
Pharmaceutical & Biotech
-
High-purity fluid transfer with zero contamination risk
-
Solvent and reagent delivery systems
-
FDA-compliant processing lines
Chemical Processing
-
Transfer of flammable and explosive solvents (static dissipation is critical)
-
Corrosive chemical handling where static buildup poses safety risks
-
High-purity chemical feed and recirculation lines
New Energy
Flammable Liquid Handling
Why Choose Xinfulong Antistatic Isostatic Pressed PTFE Pipes?
-
Superior Static Protection — Uniform conductive filler distribution ensures reliable, consistent static dissipation throughout the pipe's service life, not just at the surface
-
Cleanroom Manufacturing — Critical production processes carried out in Class 1000/10,000 cleanrooms, ensuring the highest levels of purity
-
Industry-Leading Expertise — Backed by decades of fluoropolymer processing experience and R&D collaboration with Japanese and Korean experts
-
Seamless, Voidless Construction — Isostatic pressing eliminates weld lines, voids, and stress concentrations that can lead to failure in conventional pipes
-
Proven Global Track Record — Trusted by clients across Europe, Japan, Korea, Taiwan (China), and beyond
-
Comprehensive Quality Assurance — ISO 9001, ISO 14001, ISO 45001 certified with full in-house testing capabilities including dimensional inspection, surface resistivity testing, and pressure testing
-
End-to-End Service — From custom design and material selection to manufacturing, testing, and after-sales support
Customization Options
We offer fully customizable antistatic isostatic pressed PTFE pipes to meet your specific requirements:
-
Custom diameters and wall thicknesses
-
Custom lengths and spool configurations
-
Flanged ends, threaded ends, or plain ends
-
Antistatic (static-dissipative) or fully conductive grades
-
FDA-compliant materials for pharmaceutical applications
-
Integration with complete piping systems including fittings, valves, and accessories
